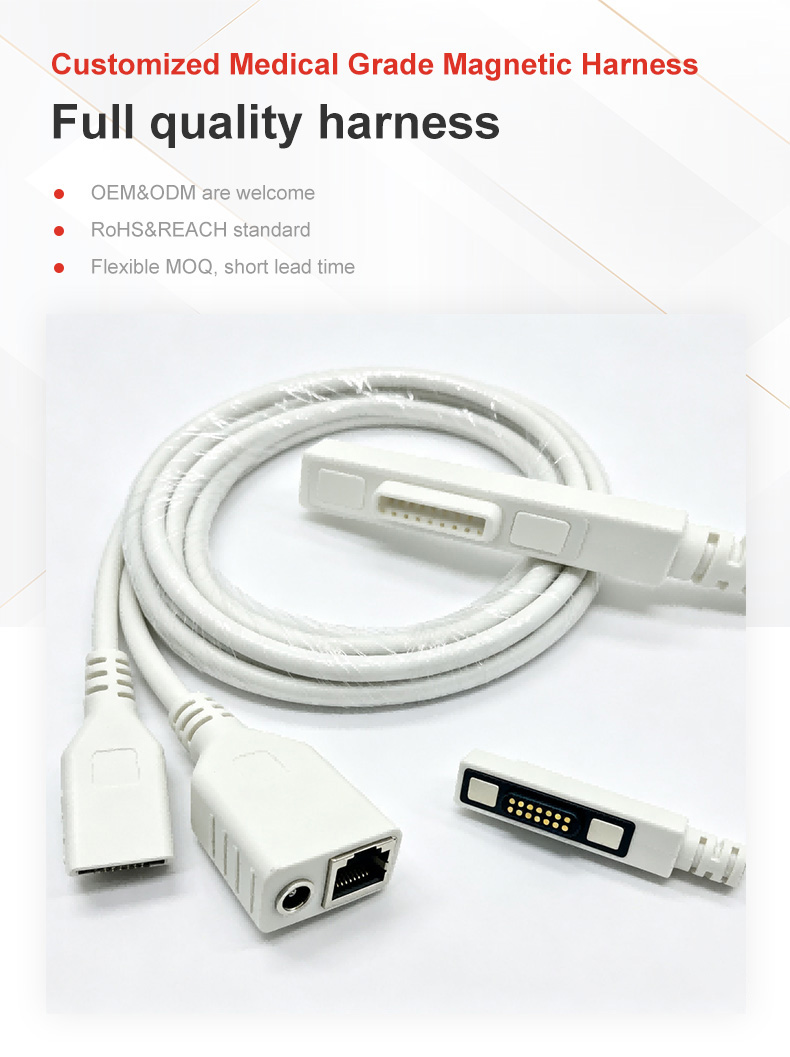

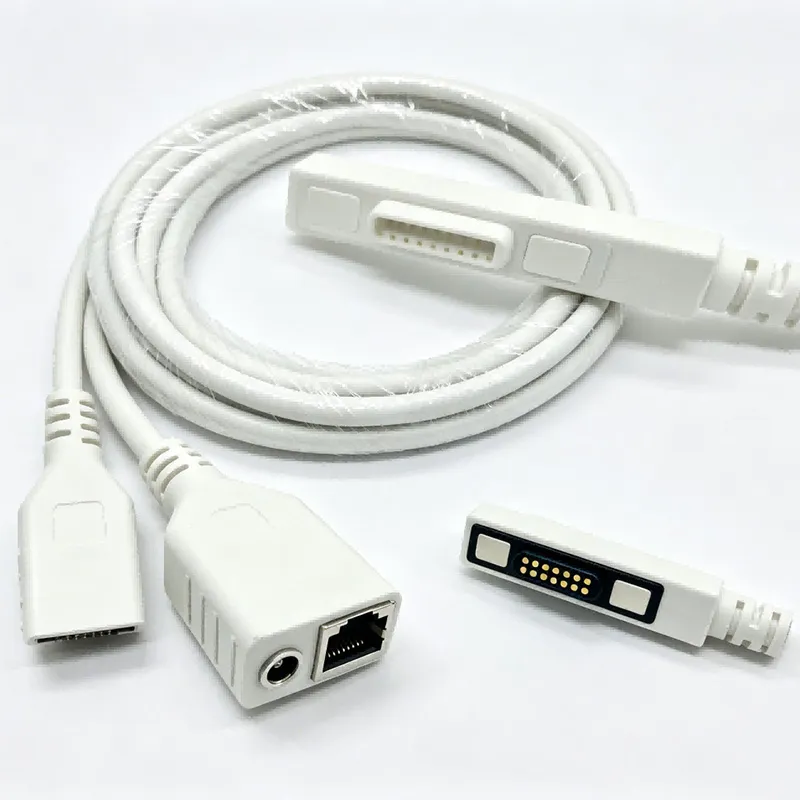

Customized Medical Grade Magnetic Harness

Part No.: VID1621H / LBX1621T

Application:

Medical-grade integrated power & signal harness, widely used in medical equipment, automation devices, vehicle-mounted systems and mobile device charging.

Connector & Pin Details:

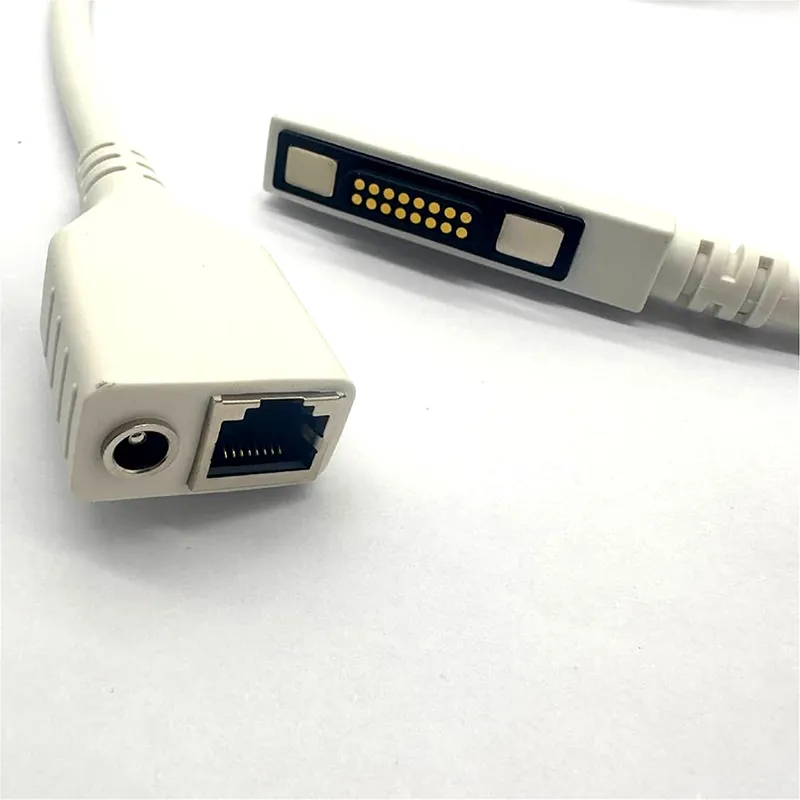

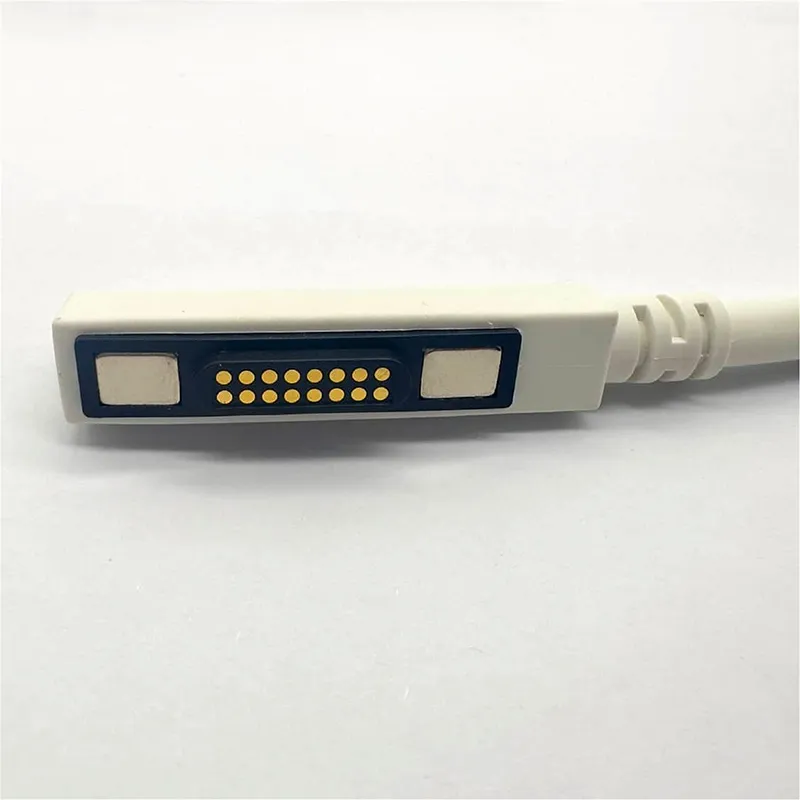

Magnetic Connector: 16-pin circular magnetic connector

Contact Material: Brass with gold plating (Au over Ni plating)

Housing Material: Medical-grade rubber / TPU (white)

Installation Style: Precision-fit mounting design

Product Series: 16-pin magnetic charging cable for medical equipment

Cable Specs:

Construction: Multi-core composite cable (customizable)

Jacket: Medical-grade TPU (PE+White TPE) outer jacket, flexible and durable

Outer Diameter: Ø5.60±0.1mm

Standard Length: 1000±100.0mm (customizable)

Key Features & Compliance:

Rated Voltage: 12V DC

Rated Current: 3.0A

Contact Resistance: ≤5mΩ (Max)

100% open/short circuit tested

IP-rated, pressure leakage tested (0.3Mpa/5s)

48-hour salt spray tested for corrosion resistance

RoHS & REACH compliant materials, suitable for medical environment

Services:

Customizable packaging: bulk / individual / blister pack available upon request

100% full inspection before shipment

Flexible MOQ & short lead time

OEM & ODM services welcome
